Add-A-Bar Kit for LightRail 5.0

Exclusive to LightRail™ 5.0, an additional crossbar kit to compliment your existing LightRail™ 5. The LightRail™ 5 Add-A-Bar kit contains one adjustable crossbar, one LightRail™ 5 Auxiliary Trolley, one push-pull rod, mounting hardware and instructions.

Add-A-Lamp to Robo Stick Hardware

Hardware and instructions to use your Robo Stik on the bottom of your Add-A-Lamp trolley. You then mount the extension rod as the instructions indicate. This kit only contains the bolts to assemble your Add-A-Lamp to Robo Stik hardware.
Instructions

Auxiliary Rail for LightRail 5.0

Exclusive to LightRail™ 5.0, an additional four foot section of LightRail™ 5 rail needed when expanding to a 3 crossbar system. LR5 Auxiliary rail contains 4 foot section of LightRail5 rail, mounting hardware and instructions.

Gearbox 10RPM

For the do it yourselfer, The 10 rpm gear box kit contains one 10 rpm gearbox and side A bracket assembly, complete with spring , drive wheel and 4 new trolley wheels for your entire unit.

Gearbox 6RPM

For the do it yourselfer, The 6 rpm gear box kit contains one 6 rpm gearbox and side A bracket assembly, complete with spring , drive wheel and 4 new trolley wheels for your entire unit.

LightRail 1/4 Hex Nut

1/4 Hex Nut used in various applications for LightRail 3.0, 3.5, 4.0 and 5.0. This very common ¼ inch nut (aka ¼ x 20) can also be found at your local hardware store.

LightRail 3.0 Add-A-Lamp Kit

LightRail™3.0 Add-A-Lamp Kit is used to compliment your existing LightRail™ 3.0, 3.5 or4.0 system by adding a second light so you can move 2 lights in line over 12 feet with adjustable run length and reflector spacing. The kit contains one split 2 meter rail, one push pull rod, one auxiliary trolley, mounting hardware and instructions.



LightRail 3.0 Auxiliary Trolley

Exclusive to LightRail™ 3.0, 3.5, and 4.0, the LR3 Auxiliary Trolley is used in the Add-A-Lamp Kit. They can also be used to festoon your lamps power cords and cooling ducts.

LightRail 3.5 Drive Unit Hardware Pack

Exclusive to LightRail 3.0, 3.5 and 4.0, this installation hardware pack contains 2 slide nuts, 2 switch stop thumb screws, 1- ¼ inch eye screw with jam nut, 12 rail mounting screws and a cable tie.

LightRail 3.5 Drive Wheel Replacement Kit

Exclusive to LightRail 3.0, 3.5 and 4.0, this Drive Wheel Replacement Kit includes a new drive wheel w/O-ring, tension spring, a new grade 5 carriage screw, coupler nut and instructions for reassembly. Kit works on all LightRail 3.0, 3.5 and 4.0’s

LightRail 3.5 Trolley Wheel Replacement Kit

Exclusive to LightRail 3.0, 3.5 and 4.0, this Trolley Wheel Replacement Kit, includes 4 new trolley wheels and 4 new mounting screws.

LightRail 5.0 – 1 inch Wood Screws

Light Rail 5.0 #10 x 1 inch Wood Screws. As used Step 2 of  the LR5 instructions for mounting the rail hanging brackets to wood, these screws can also be found at your local hardware store.

LightRail 5.0 Auxiliary Trolley

Exclusive to the LightRail 5.o. The Auxiliary Trolley is used in the Add-A-Bar Kit. It is used to hang additional cross bars or reflectors. It can also be used to festoon your power cords or cooling ducts.

LightRail 5.0 Crossbar Screw

Exclusive to LightRail 5.0, these 1/4 inch by 1 and 1/2 inch cap screws are used for fastening the LR5 cross arms to the LR5 crossbar splint when assembling the LR5 crossbar. These very common screws can also be found at your local hardware store

LightRail 5.0 Hardware Pack

Exclusive to LightRail 5.0, this is the hardware pack included with a Light Rail 5.0 Kit. It contains all 10 items and fasteners in the quantities originally supplied with one LightRail 5.0

LightRail 5.0 Light Hanging Screw

Exclusive to LightRail™ 5.0, these 1/4 ” x 2 1/2″ open eye srews are used to hang your lights from the LR5 crossbar.

LightRail 5.0 Rail Coupler

Exclusive to LightRail 5.0, this coupler is used in conjunction with LR5 slide nuts and LR5 slide nut screws for joining sections of the LightRail 5 rails together.

LightRail 5.0 Rail Hanging Bracket

Exclusive to LightRail 5.0, this rail hanging bracket is used in conjunction with LR5 slide nuts and LR5 slide nut screws for mounting the LR5 rail to a board.

LightRail 5.0 Slide Nut Screw

Exclusive to LightRail™ 5.0, these #10 x 3/8″ machine screws are used for fastening the LR5 rail hanging brackets and LR5 rail coupler to the LR5 slide nuts on the LR5 rail.

LightRail 5.0 Slidenut

Exclusive to LightRail 5, these are the slide nuts used in the LightRail 5’s Rail channel for attaching the rail coupler, the rail hangers and for securing the switch stop eye screw.

LightRail 5.0 Switch Stop Eye Screw

Exclusive to LightRail 5.0, this switch stop eye screw is used in conjunction with LR5 slide nuts to install the switch stop eye screws to the LR5 rail at your desired lamp travel switching points.



LightRail 5.0 Wing Nuts

Exclusive to LightRail 5.0, these wing nuts are used to attach the LR5 Crossbar assembly to the bottom of the LR5 Drive Motor.

LR3 Switch Stop – Slide Nut & Thumb Screw

Exclusive to LightRail™ 3.0, 3.5, and 4.0, these are used on the LR3 rail at your desired lamp travel switching points. They are packaged in sets of 6 each slide nuts and thumb screws.

RoboStik for LightRail 3.0

Exclusive to LightRail™ 3.0, 3.5 and 4.0, RoboStik is used for hanging a horizontal reflector from a LightRail™ 3.0, 3.5 or 4.0 perpendicular to the direction of travel. This item is not needed when hanging a horizontal refelctor parallel to the direction of travel.

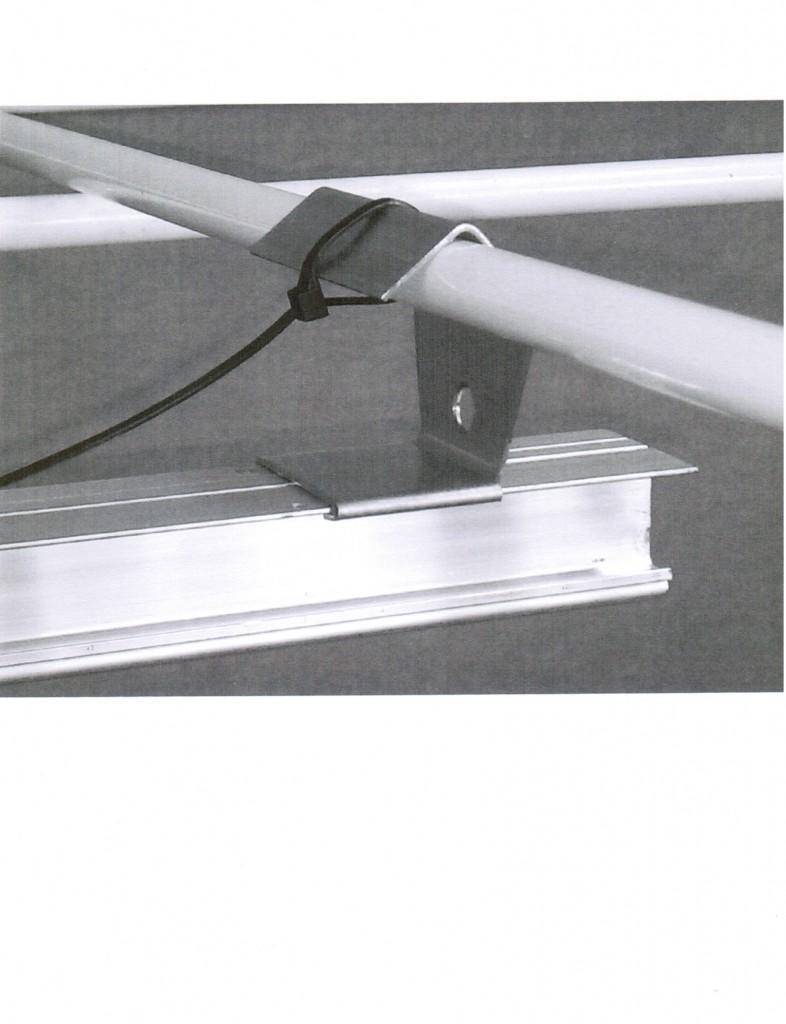

Tent Hangers



Tent hangers are used for hanging your LightRail 3.0 , 3.5 or 4.0 in a tent. These are sold in boxes of 4.

Tent Hanger Instructions
